Card dispenser for the payment of copies and prints

automatic dispenser of cards
automatic dispenser of cards

Card dispenser for the payment of copies and prints

DRC10

DRC10 is a card dispenser, creation and reload of Gespage accounts for the payment of copies and prints.

The DRC10STD system is an optional equipment of the Gespage solution, it is connected to the server via a TCP/IP network.
It enables user accounts to be both created and reloaded but also contactless cards to be sold.

Technical sheet
Description
Specifications

DRC10 is card dispenser for the payment of copies and prints.

In a Gespage environment, registered users can reload their account by coin and/or banknote according to the model.
Users are identified by entering a Login / Password from the touchscreen or by passing a contactless card through the integrated reader For new users of the service, the DRC10STD automatically creates and distributes a card associated with an anonymous account that the user can customize by accessing to the Web interface.
This account gives the user the possibility to print and photocopy throughout the fleet of MFP managed by the Gespage solution.

The DRC10 advantages for the user

  • A full “self-service” operation of the copy and print service.

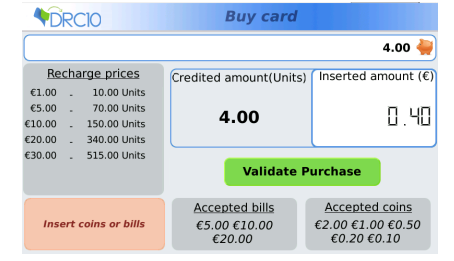

  • An intuitive and ergonomic touchscreen that allows the display of the user credit and prices.
  • Reloading of accounts by using coins and/or banknotes.
  • Full “self-service” account creation.
  • Purchasing and dispensing of contactless user cards.
  • Quick identification by contactless card or via the ergonomic keyboard.
  • Amount for free reloading with graduated tariff.

The DRC10 advantages for the administrator

  • An autonomous copy and print service without staff requirement.
  • From the Gespage interface of the server, price setting of:
  • account reloading with degressive price available,
  • Card dispensing with, possibly, a credit associated to their account.
  • Reliable and rugged system.
  • Viewing of sales statistics from the touchscreen.
  • Detailed statistics such as: turnover over a period and total, number of cards sold, amounts reloaded on accounts, number of banknotes collected …
  • Interface and home screen customizable to the image of the service provider.

Example of use

The Cartadis DRC10STD is especially suitable for a use in schools, public or university libraries.
Students buy a card associated to an account, reload their account from the dispenser and use this credit on all the copiers of the different sites of the establishment.

  • Card feeder capacity: 350 contactless cards.
  • Automatic withhold of the card dispensing when the feeder is empty, but account reloading maintained.
  • 7-inch touchscreen, resolution 800*480, 16 million colours.
  • Housing in 2 mm thick plate, closed by a lock of vending-machine type.
  • Power supply: 230 Volts – 25 Watts.
  • According to the model of DRC10STD, acceptance of 7 coins and/or 3 banknotes.
  • Options: banknote stacker (capacity: 300 banknotes), Coin changer and Ticket Printer.
  • Dimensions: height 91 cm – width 48 cm – depth 50 cm (base).
  • Empty weight: about 33 kg.
