Creation and reload of Gespage accounts for the payment of copies and prints

automatic dispenser of cards
automatic dispenser of cards

Creation and reload of Gespage accounts for the payment of copies and prints

CR10

The CR10STD system is an optional equipment of the Gespage solution, it is connected to the server via a TCP/IP network. It enables GESPAGE user accounts to be both created and reloaded.

Technical sheet
Description
Specifications

The CR10STD system is an optional equipment of the Gespage solution, it is connected to the server via a TCP/IP network. It enables GESPAGE user accounts to be both created and reloaded.


In a Gespage environment, registered users can reload their account by coin and/or banknote according to the model.


Users are identified by entering a Login / Password from the touchscreen or by passing a contactless or an ISO magnetic card according to the integrated reader.


For new users of the service, the CR10STD creates a Gespage account associated with his
identification card.


This account gives the user the possibility to print and photocopy throughout the fleet of a MFP managed by the Gespage solution.

RC10 is equipment for creation and reload of Gespage accounts for the payment of copies and prints.

The CR10 advantages for the user

  • A full “self-service” operation of the copy and print service.
  • An intuitive and ergonomic touchscreen that allows the display of the user credit and prices.
  • Reloading of accounts by using coins and/or banknotes.
  • Full “self-service” account creation.
  • Quick identification by card or via the ergonomic virtual keyboard.
  • Amount for free reloading with graduated tariff.

The CR10 advantages for the administrator

  • An autonomous copy and print service without staff requirement.
  • From the Gespage interface of the server, price setting of account reloading with degressive tariffs available.
  • Reliable and rugged system.
  • Viewing of sales statistics from the touchscreen.
  • Detailed statistics such as: turnover over a period and total, amounts reloaded on accounts, number of banknotes collected …
  • Interface and home screen customizable to the image of the service provider.

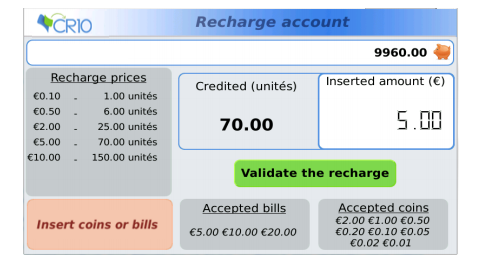

Example of use

The Cartadis CR10STD is especially suitable for a use in schools, public or university libraries.
Students reload their account from the equipment and use this credit on all the copiers of the different sites of the establishment.

reload of Gespage accounts
  • Optional card reader:
    • Contactless
    • ISO magnetic.
  • 7-inch touchscreen, resolution 800*480, 16 million colours.
  • Housing in 2 mm thick plate, closed by a 3 point-lock.
  • Power supply: 230 Volts – 25 Watts.
  • According to the model of CR10STD, coin mechanism accepting 7 coins and/or 3 banknotes.
  • Option: banknote stacker (capacity: 300 banknotes), Coin changer and Ticket Printer.
  • Dimensions: height: 91 cm – width 48 cm, depth 50 cm (base).
  • Empty weight about 33 kg.
