CPAD

Touch screen terminal for access control and management of printers and MFPs.

CPAD terminal is intended to be used with printing solutions.
7 inch touch screen and user-friendly interface make it a terminal with high commercial potential and technology, enabling the development of many “kiosks” available to developers through its open architecture. The access can be secured by a code or by cards (optional readers TCM3, TCMA2-USB, TCRS).

Technical sheet
Description
Specifications

The cPad is a touch screen terminal for printers and MFPs, fitted with a touch screen, intended to print job release from any peripheral. Copies, prints and scans are recorded and uploaded to GESPAGE.

Key functions

  • Print2me: secured and available printing from any point of print.
  • User friendly authentication by code, Login/password on the touch screen or by optional contactless, magnetic or bar code cards.
  • A personalized interface for the user authenticated (Credit / Quota, Pending prints, Billing job …).
  • A single interface whatever the peripheral.
  • A friendly selection of the documents to print.
  • Multi-brand compatibility (copiers, multifunction and network printers)
Touch screen terminal for printers and MFPs

Compatible card readers

Cartadis - Touch screen terminal for printers and MFPs - TCM3

RFID cards reader including the NFC

TCM3

Mifare® or 125 khz card reader.Connectable to cPad, or Embedded terminals.Compatible with the CartadisID application

RFID cards reader Multi Frequency

RFID cards reader Multi Frequency

TCM4

Multi-Technology contactless or proximity card USB readers, compatible with most cards on the market with 13.56 MHz MIFARE® and 12…

magnetic card reader

ISO magnetic card reader of identification for MFP and networked printers

TCMAG2-USB

The Cartadis TCMAG2-USB is used together with a CARTADIS networked terminal and a centralized management solution for copies and p…

Magnetic card reader for print

Magnetic card reader for print management

TCRS

Cartadis TCRS magnetic card reader for print connected to a payment station enables the payment by using a Cartadis magnetic card….

cPad-Pay mode: the cPad payment station

cPad is then a payment station and enables:

  • users to look for their prints by User name or PC
  • name, to provide a fully anonymous service, to pay with the Cartadis magnetic cards (via the connection of a TCRS reader).
Gaspage products

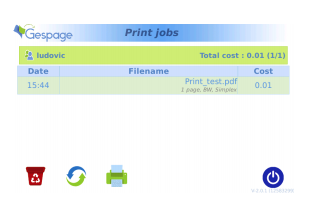

Gaspage print jobs

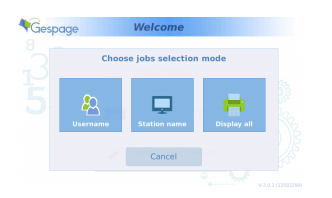

Gaspage welcome
  • Power supply: 24V 1A.
  • Dimensions of the reader (mm): 188 L / 128 W / 37 H.
  • Weight: 540 g.
  • Compatibility with RFID, magnetic ISO cards via the optional TCM3, TCM4, TCMAG2-USB or TCRS readers.
  • 7-inch screen; resolution 800*480.
  • 16 million colours.
  • Options: fastening bracket or stand.
